Kirloskar Cast Iron ISI Sluice Valve PN1.0 Cat No:NRSV PN1.0 (12CR12-GM-IS). Flanged FF IS 1538 Tbl 4&6 , Cast Iron BODY ,Cast Iron Wedge ,Shaft :-SS410 ,Seat :Bronze,Wedge Ring :Bronze, HandWheel Operation - Valvesekart
Kirloskar Sluice -Gate Valve PN1.0/1.6->C I I:Body & Wedge ,Shaft :-12CR12, body & Wedge Seat :Bronze. 150/300/600 cl WCB :Body & Wedge 13% Cr. Trim Hand Wheel Oper. Choose Pr Rating->
Kirloskar Sluice -Gate Valve PN1.0/1.6->C I I:Body & Wedge ,Shaft :-12CR12, body & Wedge Seat :Bronze. 150/300/600 cl WCB :Body & Wedge 13% Cr. Trim Hand Wheel Oper. Choose Pr Rating->
Kirloskar Cast Iron ISI Sluice Valve PN1.0 Cat No:NRSV PN1.0 (12CR12-GM-IS). Flanged FF IS 1538 Tbl 4&6 , Cast Iron BODY ,Cast Iron Wedge ,Shaft :-SS410 ,Seat :Bronze,Wedge Ring :Bronze, HandWheel Operation - Valvesekart
Kirloskar Sluice -Gate Valve PN1.0/1.6->C I I:Body & Wedge ,Shaft :-12CR12, body & Wedge Seat :Bronze. 150/300/600 cl WCB :Body & Wedge 13% Cr. Trim Hand Wheel Oper. Choose Pr Rating->
Kirloskar Carbon Steel Trim 1 GATE VALVE 150#(up to 300mm) Cat No: CS GATE VALVE, API 600,CL-150#,Type:Bolted Bonet,150# Flanged ANSI RF, WCB BODY ,WCB Wedge ,Shaft :-SS410 ,Body Seat &,Wedge facing :13% Cr.,HandWheel Operated - Valvesekart
Kirloskar Carbon Steel Trim 1 GATE VALVE 300# (Up to 350 mm) Cat No:CS GATE VALVE, API 600,CL-300# .Type:Bolted Bonet,300# Flanged ANSI RF, WCB BODY ,WCB Wedge ,Shaft :-SS410 ,Body Seat & Wedge facing :13% Cr.,HandWheel Operated - Valvesekart
Kirloskar Carbon Steel Trim 1 GATE VALVE 600# (Up to 200 mm) CS GATE VALVE, API 600,CL-600# Bolted Bonet,300# Flanged ANSI RF, WCB BODY ,WCB Wedge ,Shaft :-SS410 ,Body Seat :13% Cr.,Wedge facing :13% Cr.,HandWheel Operated - Valvesekart
Kirloskar Cast Iron IS Sluice Valve PN1.6 Cat No:`. Flanged FF IS 1538 Tbl 4&6 , Cast Iron BODY ,Cast Iron Wedge ,Shaft :-SS410 ,Seat :Bronze,Wedge Ring :Bronze, HandWheel Operation - Valvesekart
Kirloskar Sluice -Gate Valve PN1.0/1.6->C I I:Body & Wedge ,Shaft :-12CR12, body & Wedge Seat :Bronze. 150/300/600 cl WCB :Body & Wedge 13% Cr. Trim Hand Wheel Oper. Choose Pr Rating->
Kirloskar Sluice -Gate Valve PN1.0/1.6->C I I:Body & Wedge ,Shaft :-12CR12, body & Wedge Seat :Bronze. 150/300/600 cl WCB :Body & Wedge 13% Cr. Trim Hand Wheel Oper. Choose Pr Rating->
Kirloskar Sluice -Gate Valve PN1.0/1.6->C I I:Body & Wedge ,Shaft :-12CR12, body & Wedge Seat :Bronze. 150/300/600 cl WCB :Body & Wedge 13% Cr. Trim Hand Wheel Oper. Choose Pr Rating->

Kirloskar Sluice -Gate Valve PN1.0/1.6->C I I:Body & Wedge ,Shaft :-12CR12, body & Wedge Seat :Bronze. 150/300/600 cl WCB :Body & Wedge 13% Cr. Trim Hand Wheel Oper. Choose Pr Rating->

Rs. 7,440.84
Rs. 7,440.84
Shipping calculated at checkout.

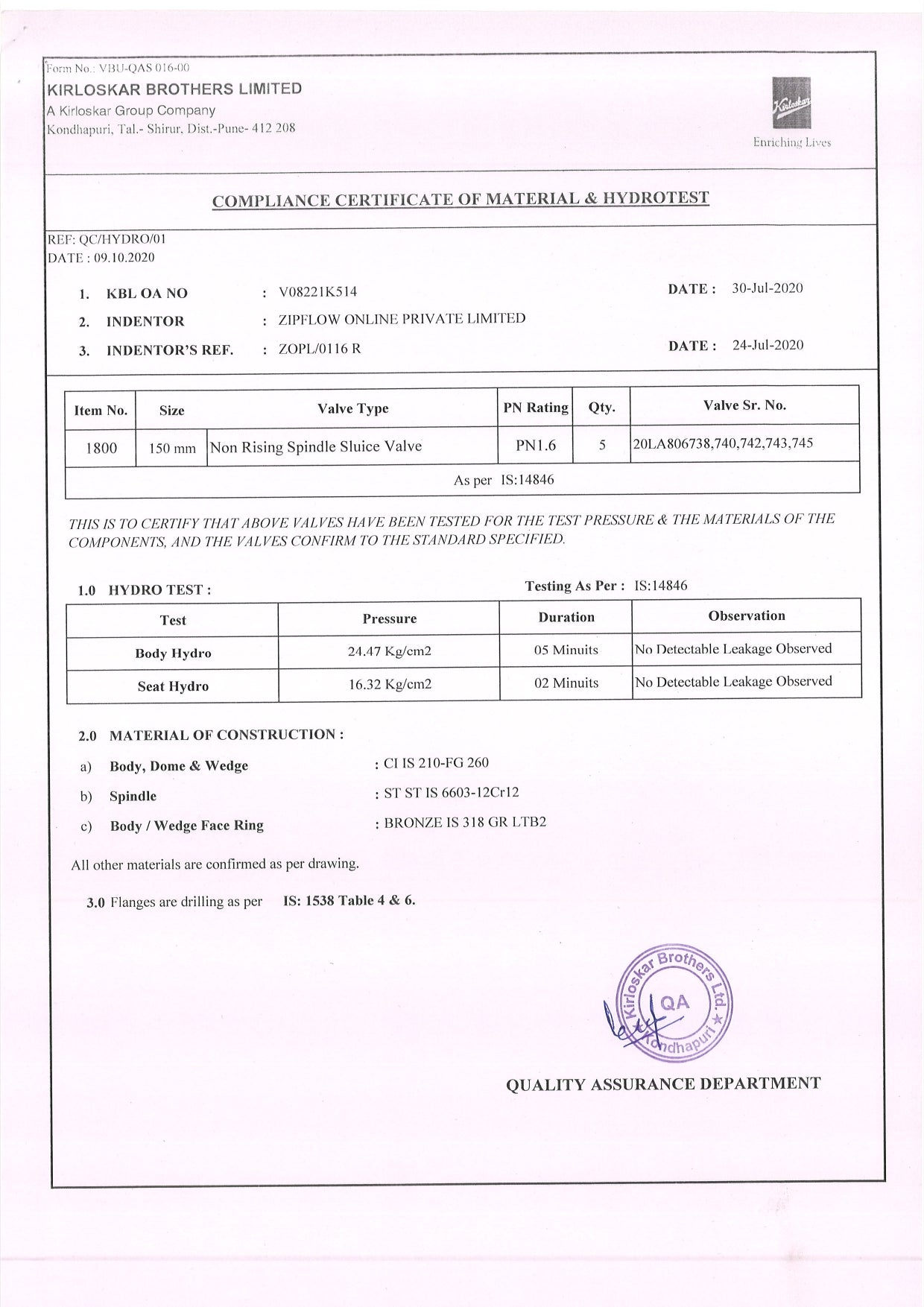

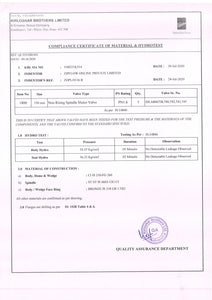

Above Prices are Ex-Faridabad -Haryana , GST@18% Extra, Kirloskar Compliance Certificate of Material & Hydro Test will be  provided ( See Sample in media pic.)

Click for Kirloskar ->   PN16 CI ISI  Reflux Valve    150# Class CS Reflux NRV Valve       300# Class CS Reflux NRV Valve      600# Class CS Reflux NRV Valve

CLICK FOR BRAND AS PER  YR CHOICE - KIRLOSKAR /KARTAR/LEADER/PURI IND

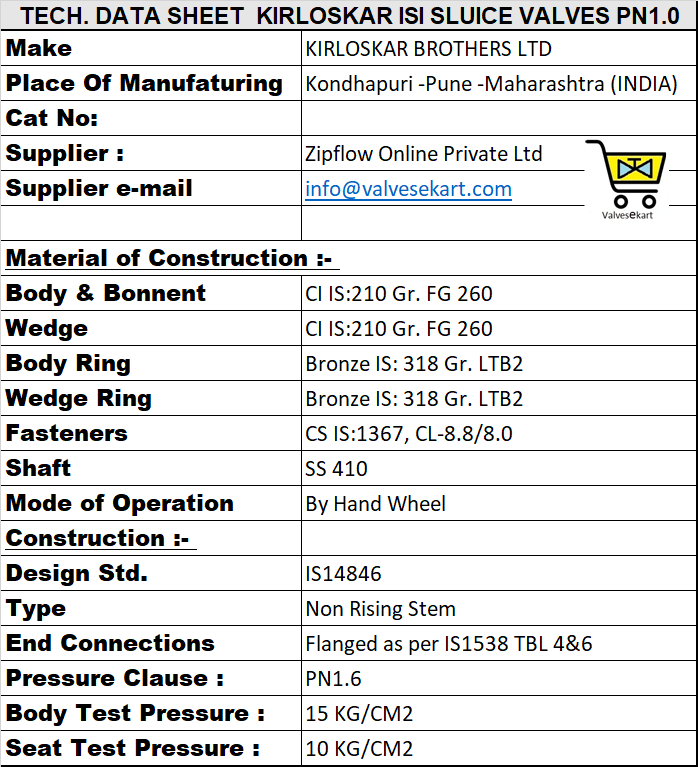

Technical Data Sheet

Design STD IS 14846 MAKE Kirloskar Brothers Ltd
Sub Type IS Non Rising Stem Class PN1.0
Body /Bonet  MOC CI IS 210 GR FG 260 Wedge CI IS 210 GR FG 260
Body Seat IS : 318 Gr. LTB - 2 Wedge Ring IS : 318 Gr. LTB - 2
End Connection Flanged FF Flg Drilling IS 1538 TBL 4&6 FF
Body /Seat Test Pr. 15/10 kg/cm2 Operation By Handwheel

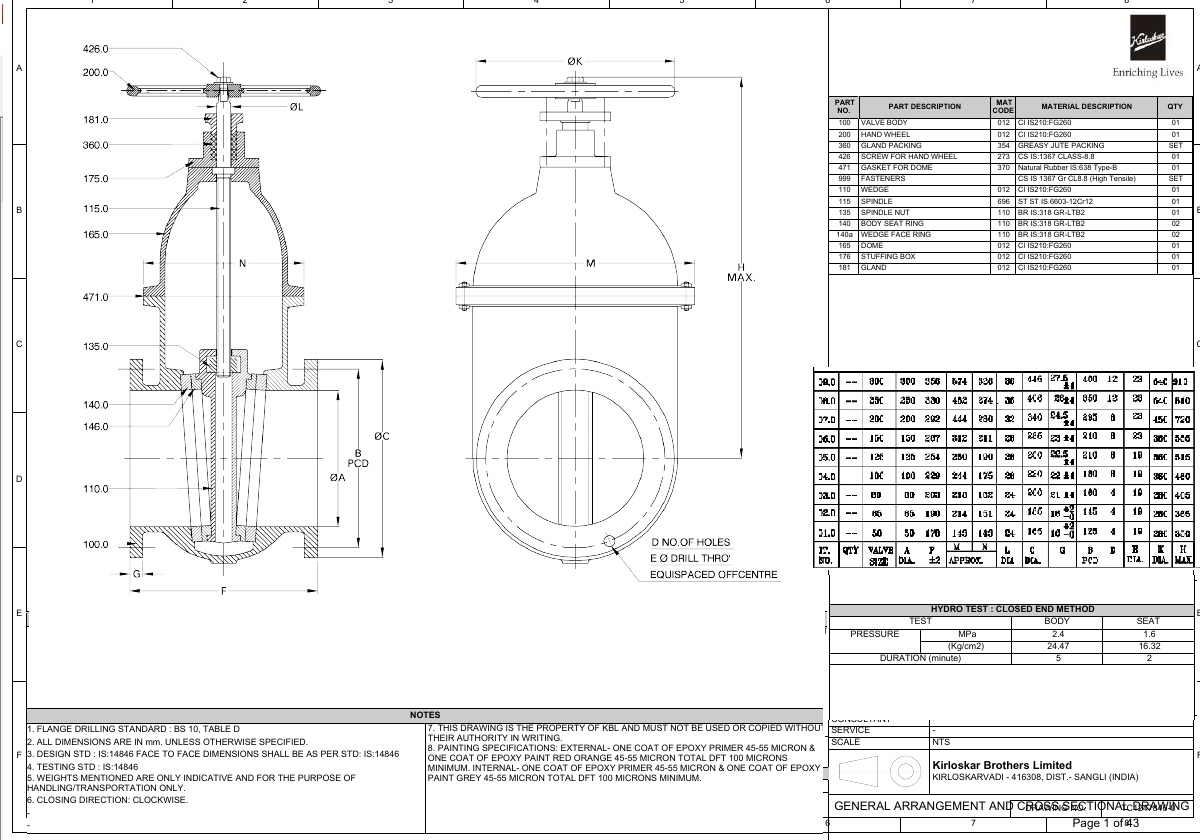

 Click for Kirloskar Sluice Valves  PN1.6 GAD

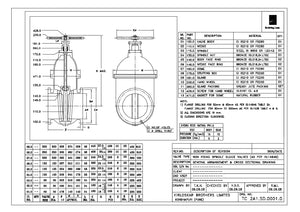

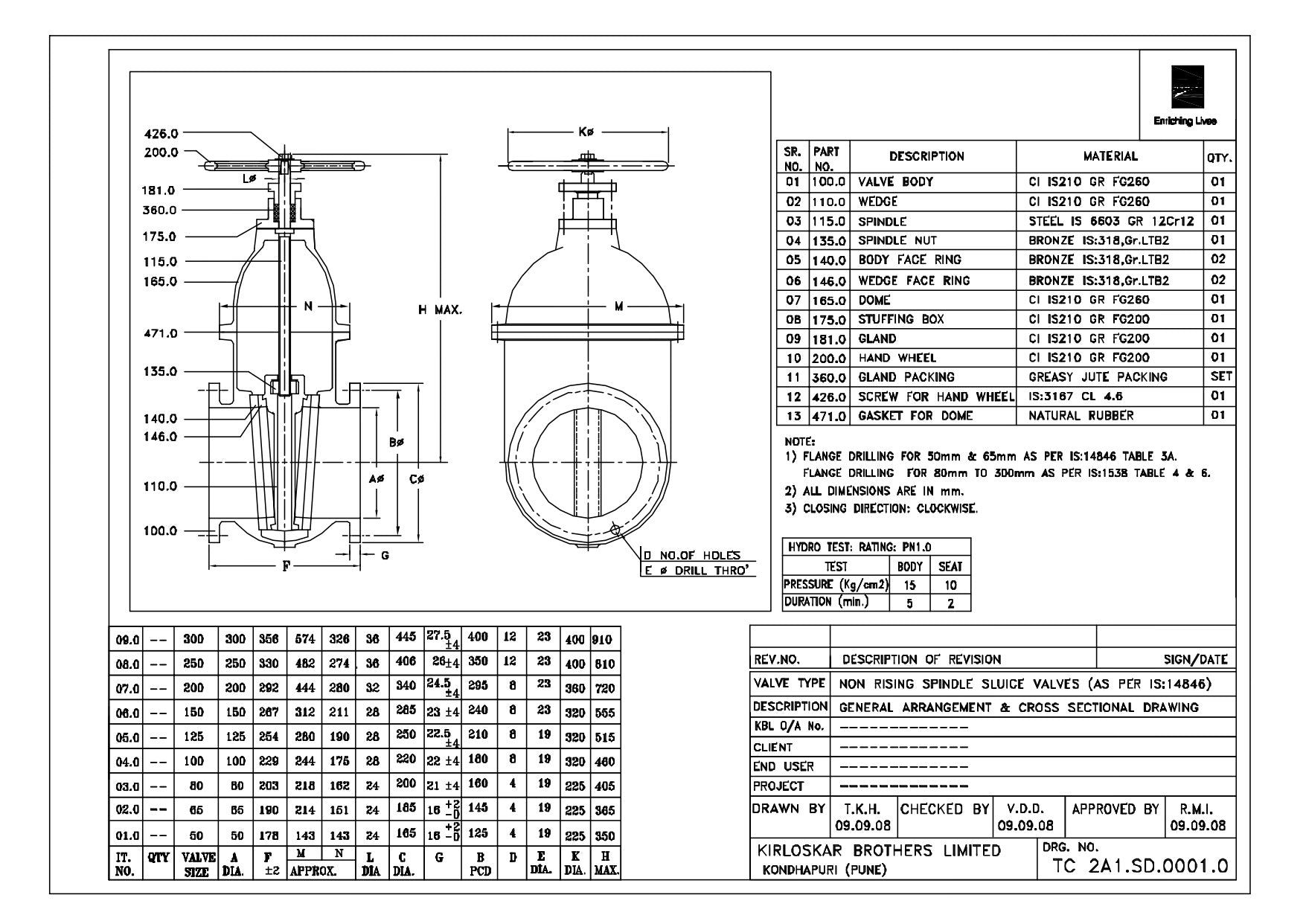

Click for Kirloskar Sluice Valves  PN1.0 GAD

Click for Kirloskar  CS Gate Valve 150 Class GAD

Click for Kirloskar  CS Gate Valve 300 Class GAD

  Click to download Kirloskar CS  Gate Valve Catalogue



  Click to download Kirloskar Sluice Valve Catalogue
