Above Prices are EX-Faridabad(Haryana ) - GST @18% EXTRA
- Technical Data Sheet

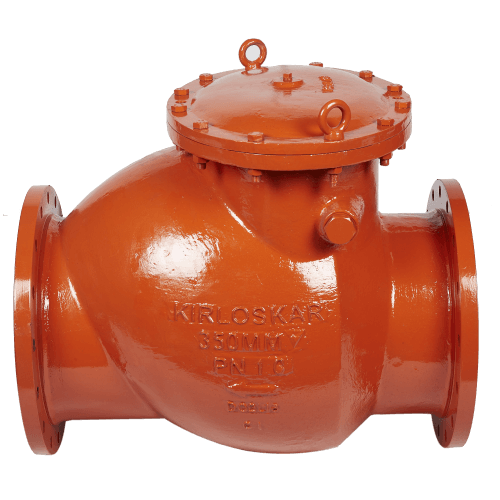

Design STD | IS 5312 Part 1 | Make | Kirloskar Brothers Ltd |
Sub Type | Swing | Class | PN 1.6 |
Body/Bonet MOC | CI IS 210 GR FG260 | Wedge | CI IS 210 GR FG260 |
Body Seat | AISI 410 | Disc Ring | Nat. Rubber |
End Connection | Flanged FF | Flg Drilling | IS 1538 Table IV & VI |
Body Test Pr. | 24 kg/cm2 | Seat Test | 16 kg/cm2 |
- Click for Dimensions and Weight
- Click to download Manufaturer Catalogue
- Click to visit Manufacturer website to know more.
